Staircase Balustrade Cable Mesh Diamond Shape Customized Panel Size

Name: Staircase Balustrade Cable Mesh Diamond Shape Customized Panel Size
Brand: Yuntong
Price: 1 USD

Buy cheap Staircase Balustrade Cable Mesh Diamond Shape Customized Panel Size product

Brand Name : Yuntong

Model Number : YT--F-F

Certification : CE , SGS

Place of Origin : Hebei

MOQ : 10 Sqm

Payment Terms : T/T, Western Union,PayPal

Supply Ability : 300Sqm/Week

Delivery Time : 5-8 Work Days

Packaging Details : Package film for each piece,Several pieces packed in 1 carton

Material : Stainless Steel 304 , 316 , 316L

Wire Rope : 1.2 mm to 4.0 mm

Rope Constructions : 7 x 7 , 7 x 19 , 1 x 19

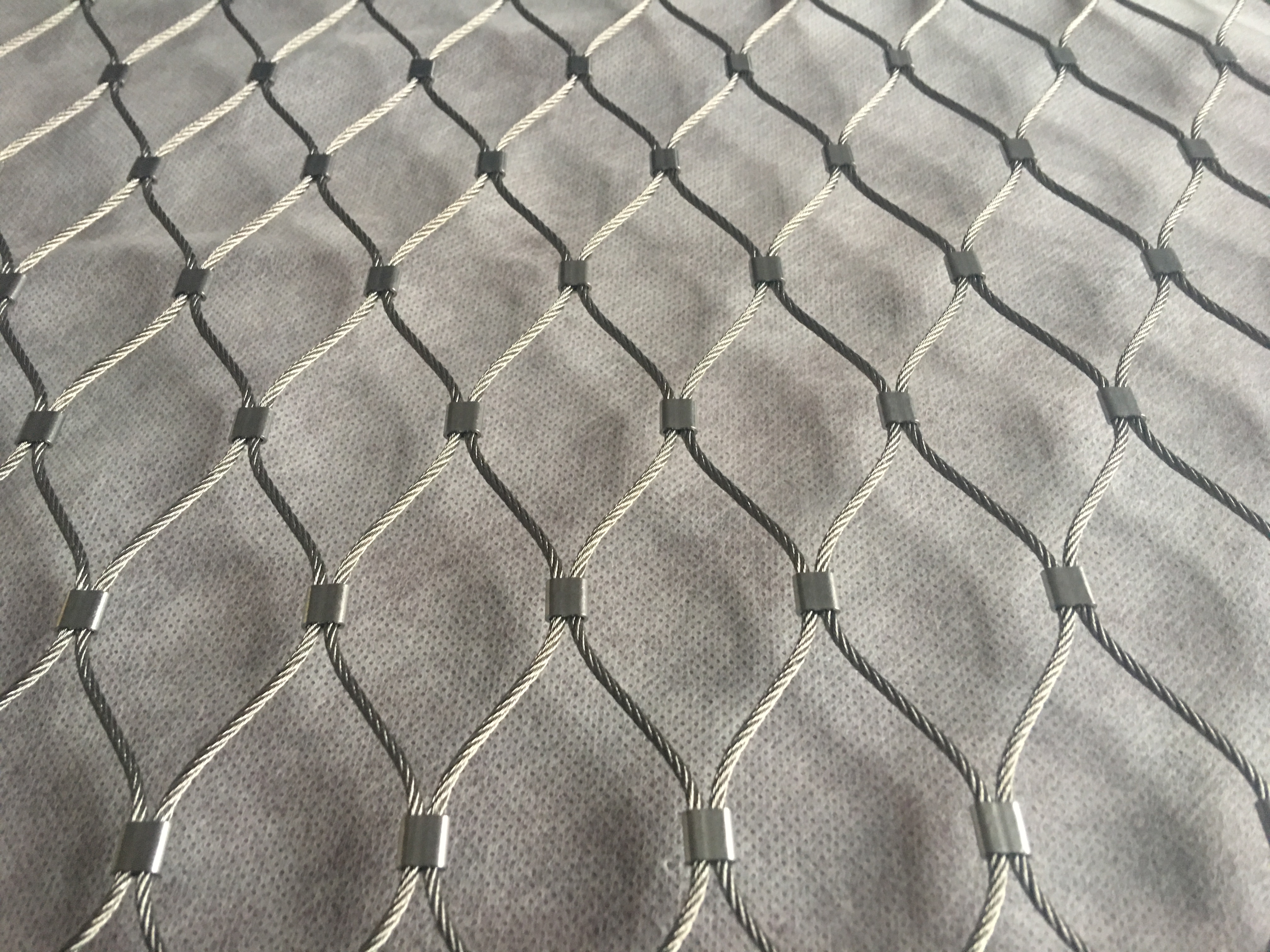

Finished : Ultrasonic Bath ,Black Oxide

Mesh Orientation : Horizontal , Vertical

Product Name : Balustrade Infiller Cable Wire Mesh

Mesh Shape : Rhombus , Diamond

Application : Staircase Security , Balustrade Infill , Railing Safety

Panel Size : Customized in width and length

Contact Now

X-tend Inox Diamond Shape Balustrade Infiller Cable Wire Mesh

Cable Wire Mesh Specifications Sheet :

Hole Size (Opening)	1.2MM(3/64) (7 x 7 )	1.6MM(1/16) (7 x 7 )	2.0MM(5/64) (7 x 7 )	2.4MM(3/32) (7 x 7 )	3.2MM(1/8) (7 x 19 )
20 x 35mm	YT-1235
25 x 42mm	YT-1225	YT-1625
30 x 52mm	YT-1230	YT-1630	YT-2030
35 x 60mm	YT-1235	YT-1635	YT-2035
38 x 66mm	YT-1238	YT-1638	YT-2038	YT-2438
40 x 69mm	YT-1240	YT-1640	YT-2040	YT-2440	YT-3040
50 x 86mm	YT-1250	YT-1650	YT-2050	YT-2450	YT-3050
60 x 104mm	YT-1260	YT-1660	YT-2060	YT-2460	YT-3060
70 x 120mm	YT-1270	YT-1670	YT-2070	YT-2470	YT-3070
76 x 131mm	YT-1276	YT-1676	YT-2076	YT-2476	YT-3076
80 x 138mm	YT-1280	YT-1680	YT-2080	YT-2480	YT-3080
90 x 154mm	YT-1290	YT-1690	YT-2090	YT-2490	YT-3090
100 x 173mm	YT-12100	YT-16100	YT-20100	YT-24100	YT-30100
120 x 206mm	YT-12120	YT-16120	YT-20120	YT-24120	YT-30120

1. Material of Stainless Steel Zoo Wire Mesh : Stainless steel 304, 304L, 316, 306L etc.

SS304	(%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035
SS316	(%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5
SS316L	(%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0

2. Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.

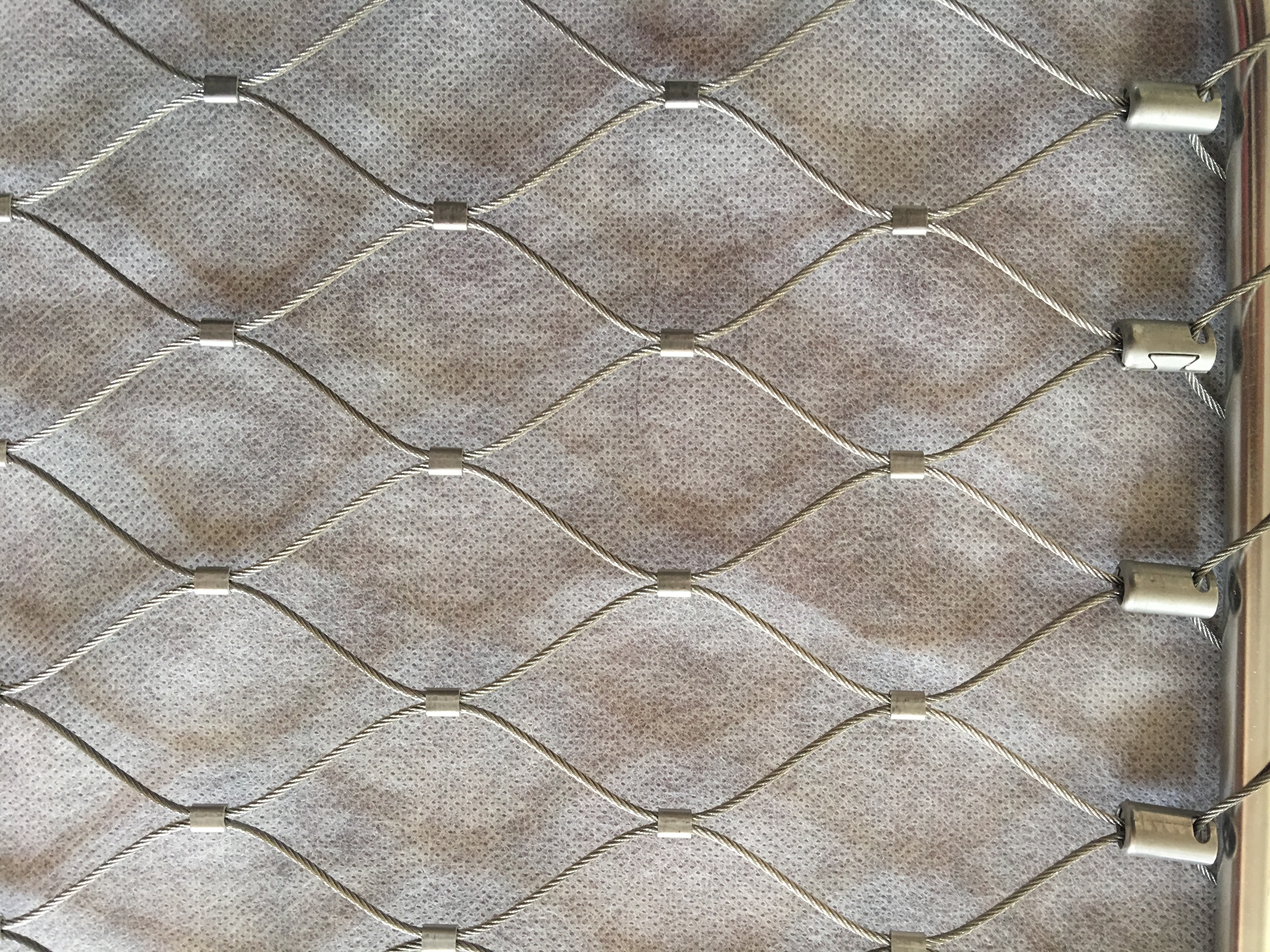

Finished diamond mesh style when it is stretched at 60 degree angle ;

Recommended Balustrade Infill Cable Wire Mesh:

Material	Cable Diameter	Hole Size	Normal Break
SS304/316/316L	1/16" (1.6MM)	2.5" x 2.5"	480 LBS
SS304/316/316L	1/16" (1.6MM)	2" x 2"	480 LBS
SS304/316/316L	5/64" (2.0MM)	2.5" x 2.5"	676 LBS
SS304/316/316L	5/64" (2.0MM)	2" x 2"	676 LBS
SS304/316/316L	5/64" (2.0MM)	3" x 3"	676 LBS

Balustrade Infill Cable Mesh is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316 / AISI316L ; X-tend type cable mesh is custom manufactured to suit your balustrade, railing or architecture application; Mesh can be applied in either a vertical or horizontal direction, again dependent on the balustrade or railing design ; Diagonal and irregular shapes can also be supplied.

Cable Mesh by Yuntong made from stainless steel wires, and has skin-like characteristics.
It can form a plane surface but can also be tensioned into three-dimensional forms featuring funnel-like, cylindrical or spherical.
